MDZ11 5060 SMD LED Strip



MDZ11 5060 SMD LED Strip



Light Source: 5060 SMD

LED Power: 7.2W

Iinput Voltage: 12V DC

Frequency: 50/60Hz

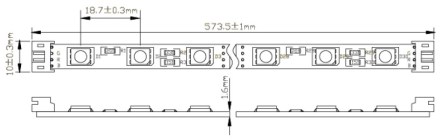

Dimension: 573.5*10mm

Color: R/G/B/Y/RGB/CW/WW

Beam Angle: 120°

Service Life: >30000Hrs

CRI(Ra): >75



Features and Benefits:



- HIGH BRIGHTNESS

- Low profile

- Long life

- Cut to length

- High brightness

- Easy mounting

- CE and RoHS compliant

Applications:



- slim design for narrow and compact led signage.

- waterproof for outdoor adverting signs channel-letter，

- effective contouring，outdoor waterproof led lighting projects，etc.





Characteristics At Ta=25oC



 Part Number  Tc(k)  Colour  LED Q`ty  Intensity  Power(W) Forward Voltage
MDZ11-5060V-30-12
  - Red 30  81lm 7.2W  12V DC
MDZ11-5060G-30-12
  - Green 30  220lm 7.2W  12V DC
MDZ11-5060B-30-12
  - Blue 30  53lm 7.2W  12V DC
MDZ11-5060Y-30-12
  - Yellow 30  81lm 7.2W  12V DC
MDZ11-5060W3-30-12
  5000-7000K  Cool white 30  225lm 7.2W  12V DC
MDZ11-5060W6-30-12
 2700-3500K Warm white 30  210lm 7.2W  12V DC
MDZ11-5060RGB-30-12
 - RGB 30 R81/G220/B53lm 7.2W  12V DC
