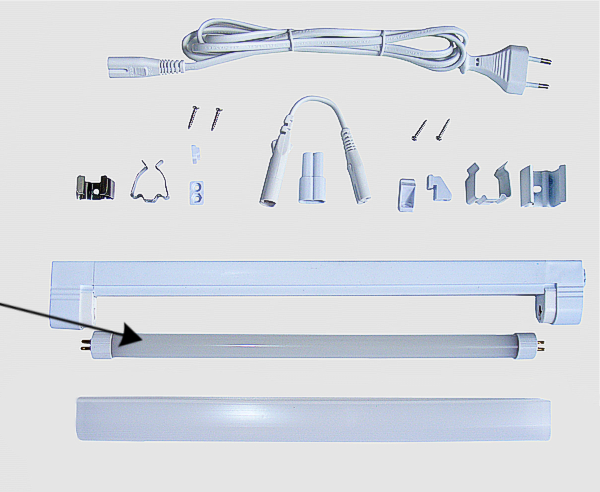

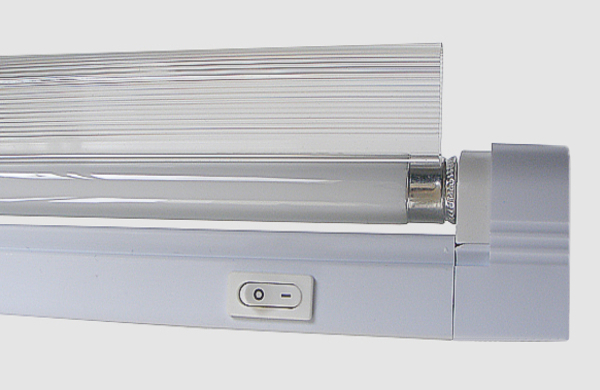

Langfeldleuchten LED T5
LED-Konverter im Inneren
Superkompakte Abmessungen
Betriebsspannung 230-240V AC – 50/60 Hz
Körper und Schirm - Kunstoff
Schutzart IP rating: IP20
Linear Fixtures LED T5
LED Driver inside
Small dimensions
Supply voltage 230-240V AC – 50/60 Hz
Body and shield – plastic
IP rating - IP20
|

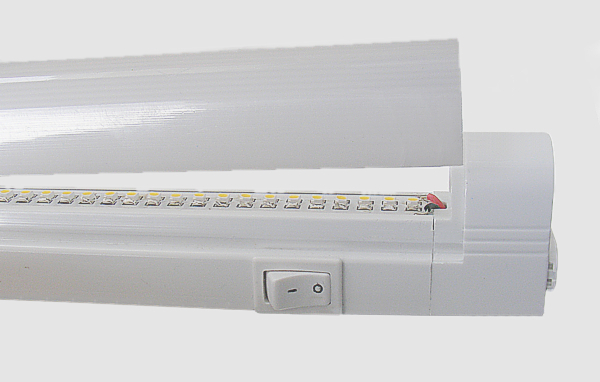

Langfeldleuchten LED T5 Type A Langfeldleuchten LED T5 Type B
|
| |
| |
| |
Type
|
SMD 5050
LED |
Power
[W] |
Lumen
[lm] |
L - Length
[mm] |
|
|
MDZ5001-1
LED |
10 LED |
2W |
>180 lm |
268 mm |
6400 K DL Day Light
4000 K CW Cool White
2700 K WW Warm White |
Type A |
MDZ5001-2
LED |
14 LED |
3W |
>250 lm |
343 mm |
6400 K DL Day Light
4000 K CW Cool White
2700 K WW Warm White | Type A
Type B |
MDZ5001-3
LED |
26 LED |
6W |
>410 lm |
573 mm |
6400 K DL Day Light
4000 K CW Cool White
2700 K WW Warm White | Type A
Type B |
MDZ5001-4
LED |
42 LED |
9W |
>760 lm |
904 mm |
6400 K DL Day Light
4000 K CW Cool White
2700 K WW Warm White | Type A
Type B |
MDZ5001-5
LED |
56 LED |
12W |
>1000 lm |
1204 mm |
6400 K DL Day Light
4000 K CW Cool White
2700 K WW Warm White | Type A
|
|
 |
 |
Zuleitung 3000 mm
(500 mm - 5000 mm Auf Anfrage)
Power supply cable 3000 mm
(500 mm - 5000 mm on request) |
|
 |
 |

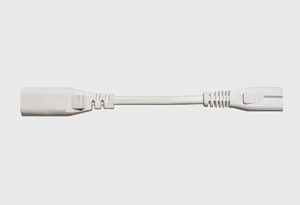

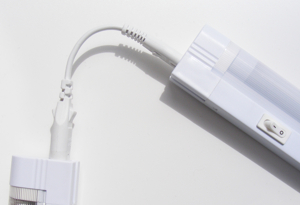

Verlängerungsleitung 210 mm
(100 mm - 2000 mm Auf Anfrage)
Extension lead 210 mm
(100 mm - 2000 mm on request) |
|
 |
 |

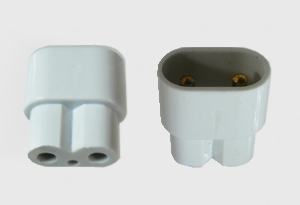

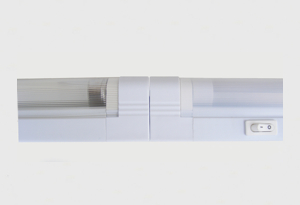

Direktverbinder
Direct connector |
|
 |
 |

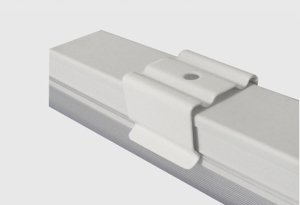

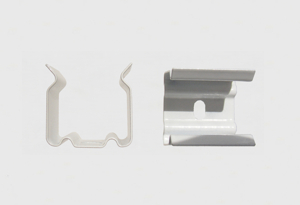

Montageclip 25 mm Metall-Ausführung (weiß lackiert)
Mounting clip 25 mm metal version (white painted) |

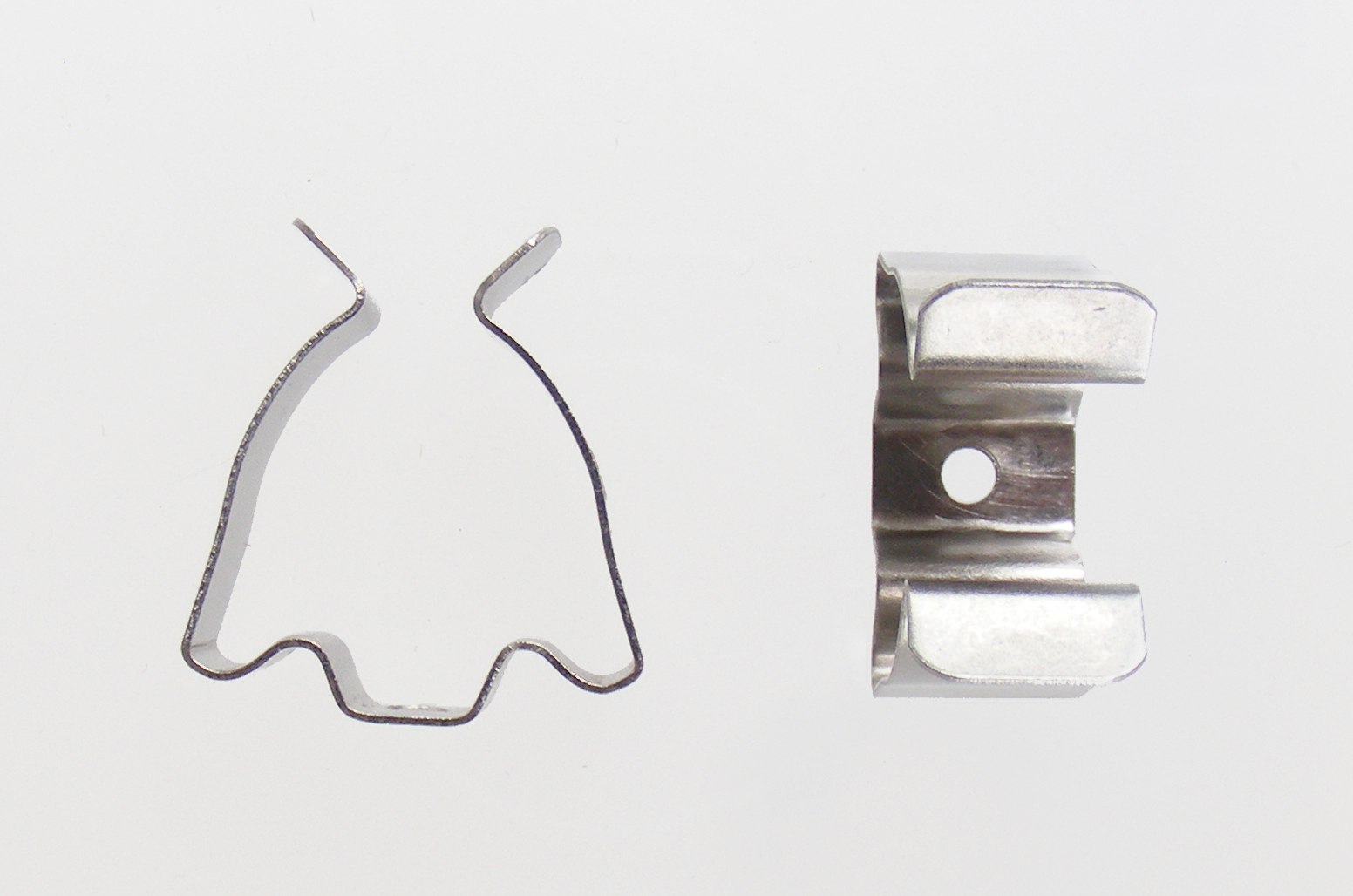

Montageclip 12 mm Metall-Ausführung
Mounting clip 12 mm metal version
|
 |
 |

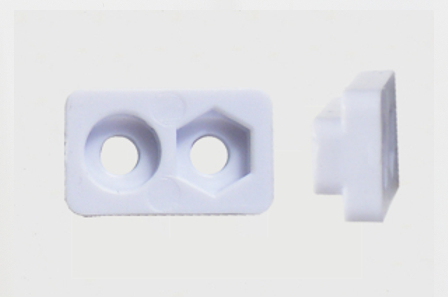

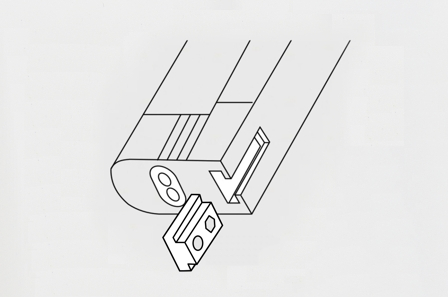

Montageclip
Mounting clip |
|
 |
 |

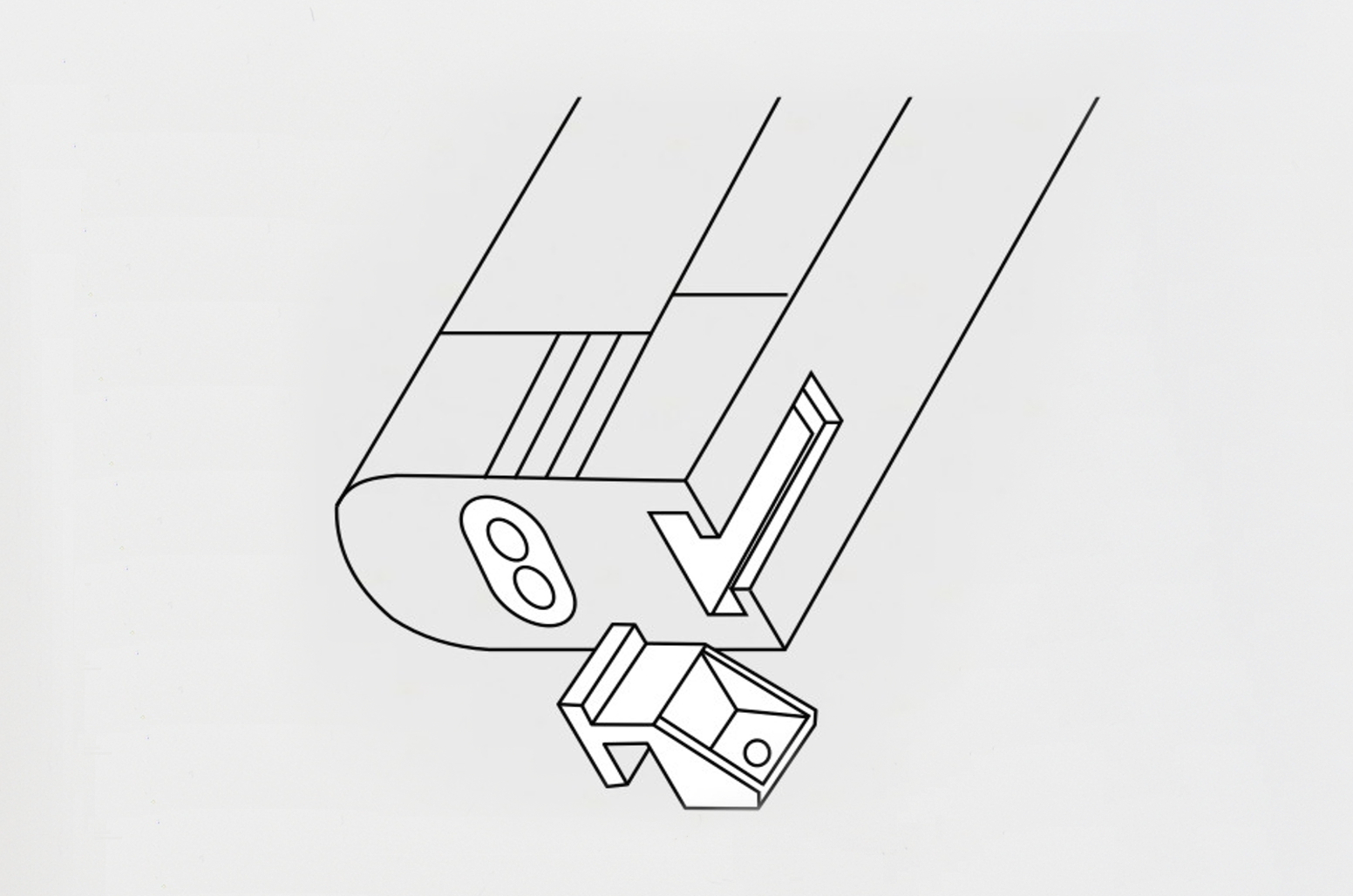

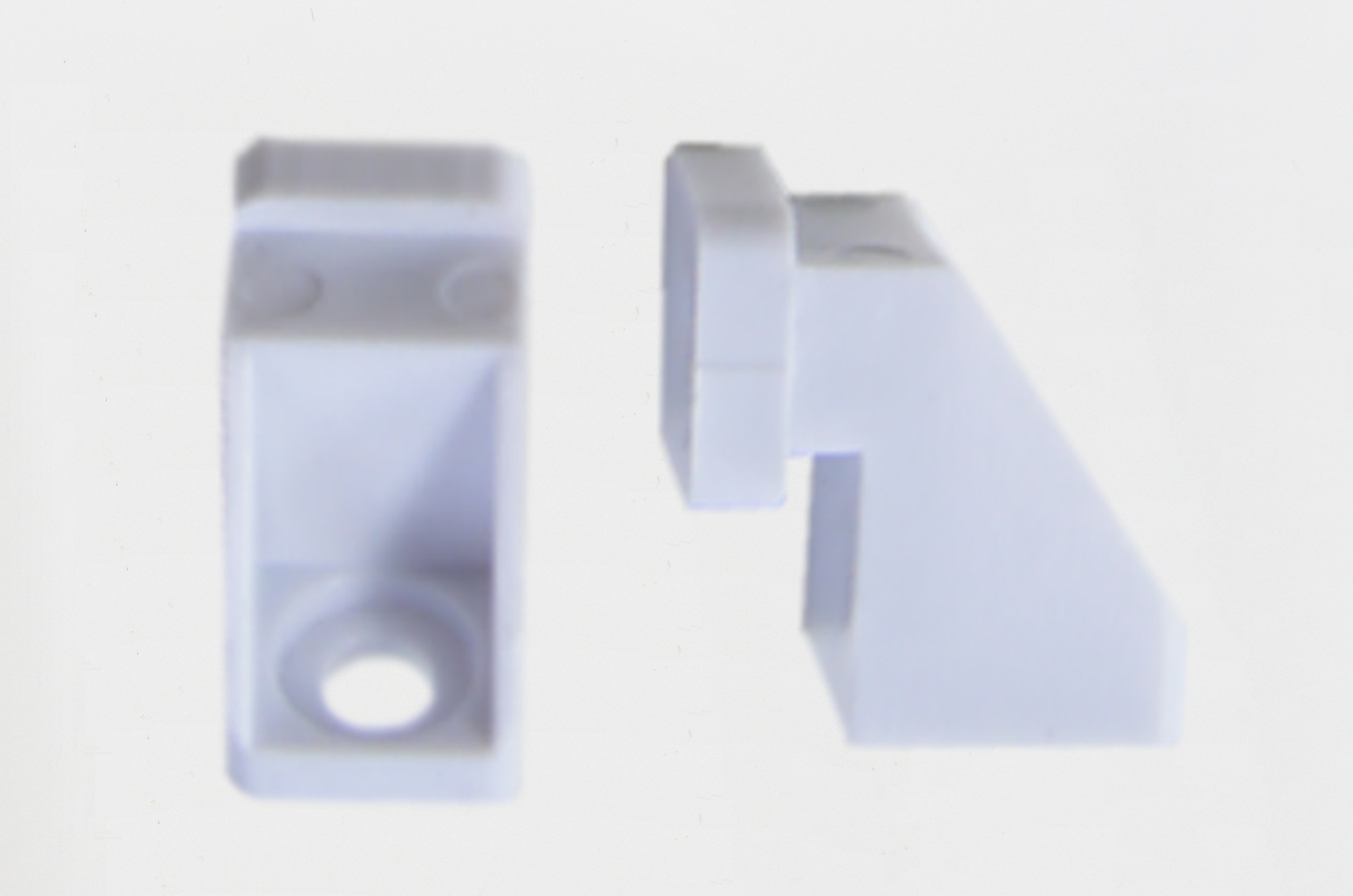

Montageclip vertikal
Fixing bracket vertical |
|
