Linienleuchten LED Aufbau





MDZ11-1W High Power LED Strip	MDZ11 High CRI LED Strip	MDZ11 5060 SMD LED Strip	MDZ11 3528 SMD LED Strip
0.3m 5050 LED Strip	MDZ11 3528 SMD LED Strip	0.3m 3528 LED Strip	0.2m 3528 LED Strip

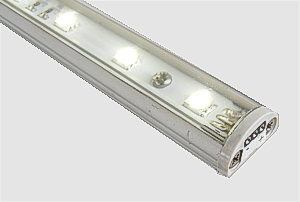

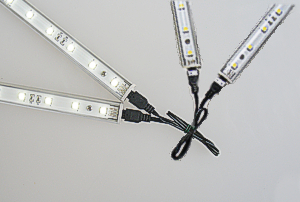

LED-Lichtleisten doppelseitig mit Buchse

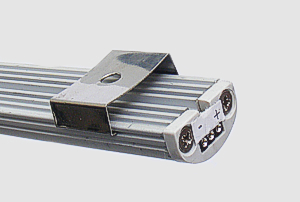

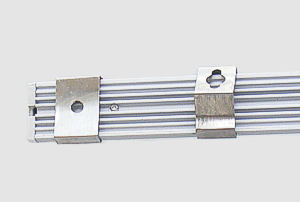

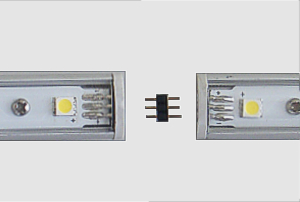

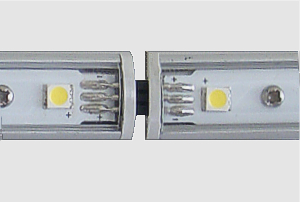

Light distribution     Model No. MDZ7503-01 MDZ7506-01 MDZ7509-01 MDZ7512-01 Input Voltage (constant V) 12VDC 12VDC 12VDC 12VDC Consumption Power 2.7W 5.4W 8.1W 10.8W LED Type SMD 5050 SMD 5050 SMD 5050 SMD 5050 LED Q'ty 12 24 36 48 Color Warm White Warm White Warm White Warm White Cool White Cool White Cool White Cool White Luminous Flux 190Lm | 220Lm 380Lm | 440Lm 570Lm | 660Lm 840Lm | 920Lm Luminous Efficacy  58 lm/W 58 lm/W 58 lm/W 58 lm/W 66lm/W  66lm/W  66lm/W  66lm/W  Correlated Color Temperature  2800-3200K 2800-3200K 2800-3200K 2800-3200K 5000-5500K 5000-5500K 5000-5500K 5000-5500K Color Rendering Index(CRI) > 65 > 65 > 65 > 65 Operation Temperature -20℃~40℃ -20℃~40℃ -20℃~40℃ -20℃~40℃ Dimension  300X19X10mm< 600X19X10mm 900X19X10mm 1200X19X10mm Beam Angle  120 degrees 120 degrees 120 degrees 120 degrees Weight  70 g 140 g 210 g 280 g           Assessories  45 degree bracket  Bracket  Linking cable  Short Connector         rigid22
